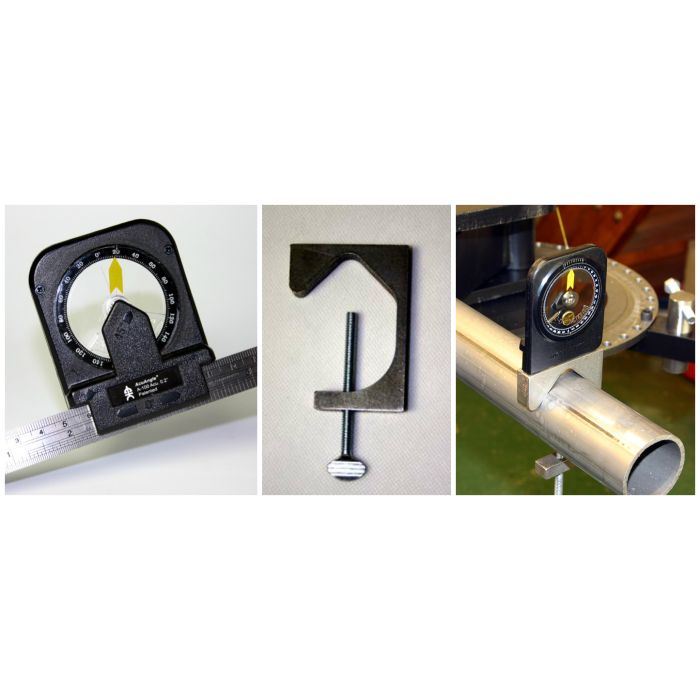

A100 Small Tube Axis Gauge & Bracket

In stock
SKU
A100TAGB
£42.95 £35.79
Calculate UK Shipping below

A100 Small Tube Axis Gauge & Bracket

A100:

Tube Axis Gauges are used to keep 2 or more bends on the same plane so that they are parallel to one another or to offset bends at various angles to one another along the tube.

This is an essential piece of equipment when making more than 1 bend on a single tube. It is attached to the tube when it has first been secured in the bender and the  bezel is then set to zero. After the first bend has been made the tube can be slid through to make the 2nd bend or removed and re-fitted at any time without losing plumb. When re-fitted, the gauge will allow the tube to be kept on the same axis or, by rotating the tube until the desired degree is obtained, adjusted to make the next bend on a different axis.

This gauge is the most precise degree indicator we have ever seen. Unlike cheaper hardware store gauges which are only accurate to 3-5 degrees due to friction problems this gauge is built with aircraft quality, is oil filled for damping with a ball bearing spindle and has a magnetic base that grips like glue. The hairline pointer will register with perfect accuracy to within a fraction of a degree using the vernier outer gauge to 0.1 degree. 6" steel rule included that clips in the base to use as an inclinometer.

  • Adjustable Inner Bezel
  • Adjustable Outer Bezel
  • Gorilla Grip Magnet
  • Precision Vernier Outer Gauge
  • Ball Bearing Spindle
  • Brass Counter Weight
  • Oil Filled Damper
  • Hairline Pointer
  • 0.1 degree accuracy
  • 6" Steel Rule included



Tube Axis Gauge Bracket

CNC machined steel bracket on which to mount the Tube Axis Gauge. Finally, a solid steel bracket that won’t budge and lets you make a bend, rotate the tube, set number of degrees then make another bend.

Works on any tube from 1/2" to 2" Outside Diameter.



Product CodeA100TAGB
Write Your Own Review
You're reviewing:A100 Small Tube Axis Gauge & Bracket
Your Rating
More Information
Manufacturer Stakesys
Material Type .
