PEGAS 220x250 GHE-R Swivel Head Bandsaw 3~ 415v
made in
Czechia
INTERNATIONAL ENQUIRIES CLICK HERE

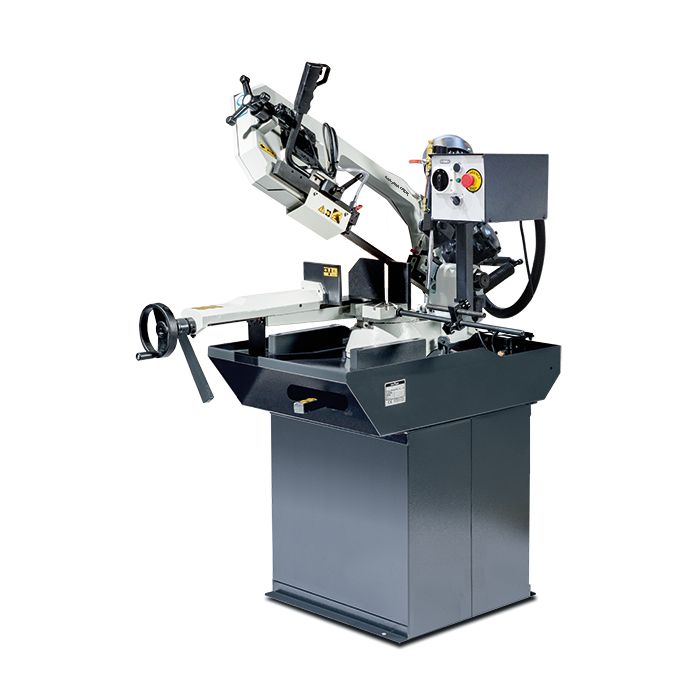

Czech made Pegas 220 x 250 GHE-R Swivel Head Workshop Saw
Gravitational band saw machine. The working movement of the arm is caused by the weight of the arm itself, speed is regulated by a hydraulic cylinder.
The machine is designed for cutting of material in vertical and angle cuts, angle cuts are possible to set fluently from 0 to 45 grades to the right. Change of angle using quick clamping handle.
It is suitable for piece production and small series production. Thanks to its robust construction it enables cutting of wide range of profiles and full materials.
Construction:
The machine is constructionaly designed in that way, so that it corresponds to standard exertions in productive conditions. That is why all carrying parts are made as cast-iron castings (solidity, absorbtion of vibrations and stops). The arm, vice and turntable are all cast iron. The arm of the machine is made of cust iron and it is designed to ensure the power and the precision of the cut. Arm is 25 grades sloped, it increases the lifetime of blade. The vice is made from cast iron. Jaws ensure safe clamping of the material. The manually operating vice is situated in an adjustable dovetail groove and is equipped with a quick clamping. Moving jaw of the vice is manual with a wheel and trapeze thread. Turn table is cast iron. A turntable gives a big place for supportion of material and its perfect clamping. Manuall turning of the table for angle cuts, angle fixation using quick clamping lever.
Basic equipment of machine:
Leading of blade in hard-metal plates. There is a guide situated on the firm beam on the drive side. On the tightening side there is the guide situated on the moving beam. The guide beams of moving band guide is adjustable in whole working range. Manual adjustment and fixing of the guide beams. Guide holder moves in adjustabled dovetail groove. The saw-band is equipped with a guard, which protects the operator from swarf and cutting fluid. Mechanic tightening of the blade. Drive of machine is solved by worm gear box with permanent oil filling. Three phase engine with double winding, two cutting speeds. Thermoprotection of motor. The cooling system distributes cutting emulsion to the band guides. Base with a tank for chips. Indication opening of the cover. Controlling 24 V.
Extras Included:
- Measuring end stop.
- Band saw blade.
- Set of spanners for common service.
- Manual instructions in eletronic form (CD).
Operating cycle:
Manually controlled quick clamping vice, cut is regulated by a hydraulics. After finishing the cut machine will stop itself automatically and an operator lifts the arm manually to the start position. Feeding of material is manually.
- 100% made in Czech Republic
- Build for Industry
- Cast Iron Construction
- Heavy Bearings for reliabilty and accuracy of cut
| Product Code | 220X250GHE-R |
| Blade Size (mm) | 2450 x 27 x 0.9 |
| Max Cutting Angle |
60° |
| Motor Specifications |
0.75/1.1kw 3~415v 50Hz |
| Blade Speeds M/Min |
30/65 |
| Max Cut Circular @ 0° |
220mm |
| Max Cut Circular @ 45° |
160mm |
| Max Cut Circular @ 60° | 90mm |
| Max Cut Square @ 0° |
150mm |
| Max Cut Square @ 45° |
90mm |
| Max Cut Square @ 60° | 90mm |
| Max Cut Rectangular @ 0° |
230 x 150mm |
| Max Cut Rectangular @ 45° |
160mm x 90mm |
| Max Cut Rectangular @ 60° | 90mm x 90mm |
| Recommended Blade |
6/10tpi |
| Dimensions |
1410 x 600 x 1490~1750 |
| Weights Gross / Net |
260 / 230kg |
| Material Type | . |
|---|
